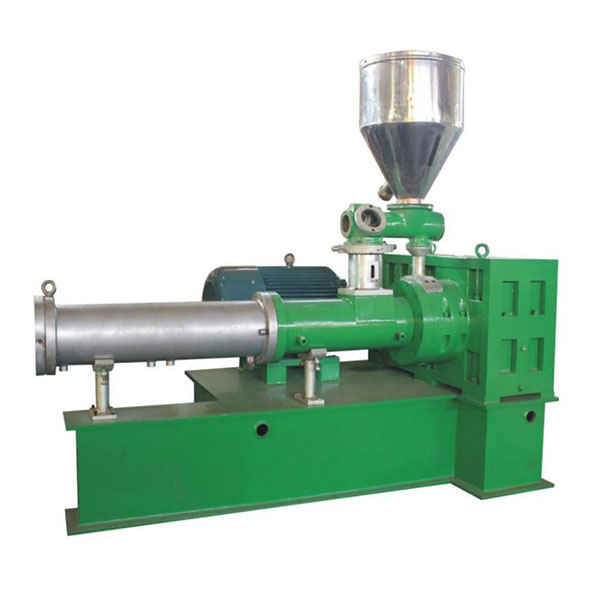

Planetary System Extruder

In recent years, single screw extruder and twin screw extruder play a key role in the plastic production industry. For increasingly sophisticated demands in the plastic, planetary system extruder is specially designed for use in the manufacturing of plastic products with higher performance. Compared to single screw and twin-screw extruder, this extruder system features a better plastification due to the homogeneous and very efficient raw material mixing.

• Model: KY150

  Screw Diameter: 150mm
  Max. Capacity: 500kg/h
  Motor Power: 90kw
  Machine Dimension: 2900L×1300w×2200h(mm)
  Oil Heater Power: 3×12kw
  Pump Power: 2×1.1w+0.75kw
• Model: KY170

  Screw Diameter: 170mm
  Max. Capacity: 800kg/h
  Motor Power: 110kw
  Machine Dimension: 3500L×1400w×2200h(mm)
  Oil Heater Power: 2×18kw+12kw
  Pump Power: 2×1.5w+0.75kw
• Model: KY190

  Screw Diameter: 190mm
  Max. Capacity: 1000kg/h
  Motor Power: 150kw
  Machine Dimension: 3800L×1600w×2500h(mm)
  Oil Heater Power: 2×22kw+12kw
  Pump Power: 2×1.5w+0.75kw
• Model: KY220

  Screw Diameter: 220mm
  Max. Capacity: 1200kg/h
  Motor Power: 200kw
  Machine Dimension: 3800L×1600w×2500h(mm)
  Oil Heater Power: 2×24kw+12kw
  Pump Power: 2×2.2w+0.75kw
• Model: KY250

  Screw Diameter: 250mm
  Max. Capacity: 1500kg/h
  Motor Power: 250kw
  Machine Dimension: 4000L×1800w×2600(mm)
  Oil Heater Power: 2×30kw+12kw
  Pump Power: 2×2.2w+0.75kw
• Model: KY300

  Screw Diameter: 300mm
  Max. Capacity: 2000kg/h
  Motor Power: 300kw
  Machine Dimension: 4200L×1800w×2600h(mm)
  Oil Heater Power: 2×36kw+12kw
  Pump Power: 2×2.2w+0.75kw

• Excellent controllability of melt temperature
• Short formula change-over times, because the toothed components continually interlock so that no material deposits can form
• Self-cleaning system
• Planetary system results in best mixing and plastification
• Narrow, controlled range of residence time
• Balanced ratio of shearing and heat transfer
