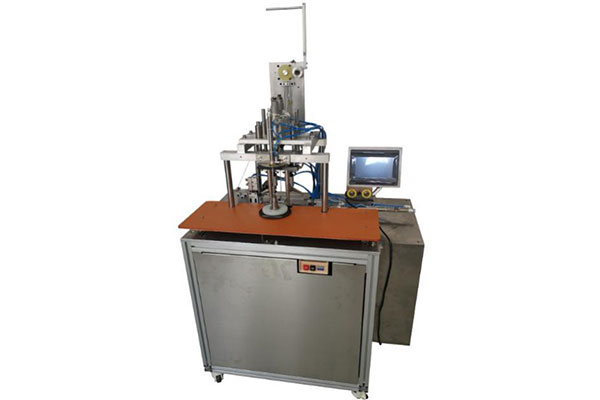

Semi-Automatic Mask Ear Loop Welding Machine

Main Specifications
Machine Dimension: 910mm(L)×600mm(W)×1450mm(H)
Production Speed: 10-20 pcs/min
Machine Weight: ≤150kg
Power Supply: 220VAC±5﹪, 50HZ
Rated Power: 500KW
Compressed Air: 0.5～0.7 MPa
Flow Rate: 300L/min
Working Environment: temperature 10～35 ℃; humidity 5-35% HR; no flammable and corrosive gas, no dust (cleanroom class not less than 100 000)

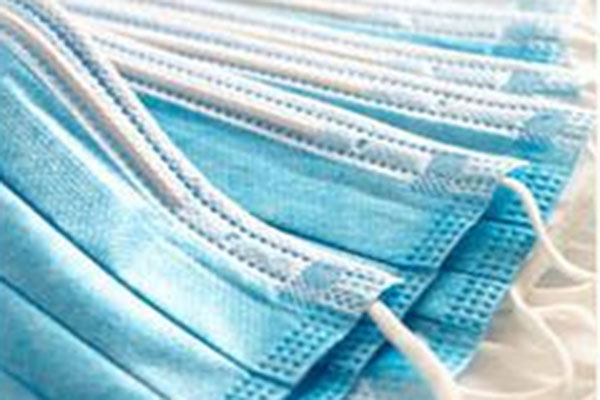

The equipment is used to weld ear loop on both sides of a face mask using ultrasonic welding technology. Featuring stable running and low cost, the semi-automatic mask ear-loop welding machine can pair with a mask production line.
